Showroom » Honda » FourTrax Rancher AT With Power Steering
Model Quick Search

$7,099.00

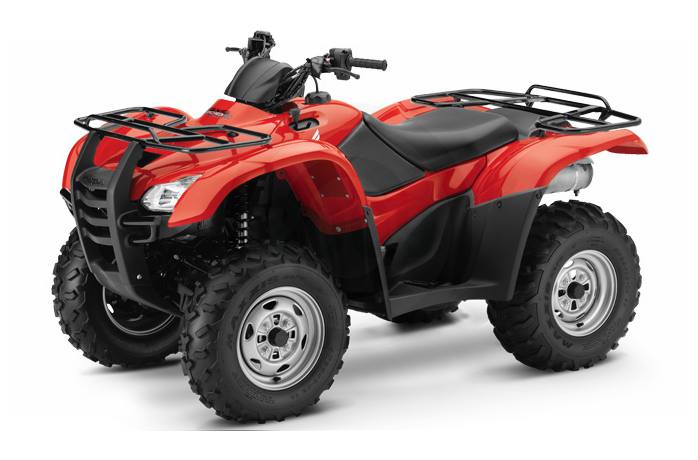

2009 Honda FourTrax Rancher AT With Power Steering
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    ENGINE
    • Engine Type: 420 cc Liquid-Cooled OHV Dry-Sump Longitudinally Mounted Single-Cylinder Four-Stroke
    • Bore x Stroke: 86.5 x 71.5 mm
    • Induction: Programmed Fuel Injection (PGM-FI), 34 mm Throttle Bodies
    • Carburetion: 36 mm CV
    • Ignition: Full Transistorized Type With Electronic Advance
    • Starter: Electic With Optional Auxiliary Recoil
    DRIVE TRAIN
    • Transmission: Automatic/ESP Five-Speed With Reverse
    • Driveline: Direct Front And Rear Driveshaft
    CHASSIS/SUSPENSION/BRAKES
    • Front Suspension: Independent Double-Wishbone, 6.3 in. Travel
    • Rear Suspension: Independent Double-Wishbone, 6.3 in. Travel
    • Front Brakes: Dual Hydraulic Disc
    • Rear Brakes: Single Hydraulic Disc
    • Rear Brake: Sealed Mechanical Drum
    • Front Tires: 24x8-12
    • Rear Tires: 24x10-11
    DIMENSIONS
    • Length: 80.9 in.
    • Width: 46.1 in.
    • Height: 45.1 in.
    • Wheelbase: 49.4 in.
    • Seat Height: 32.4 in.
    • Ground Clearance: 9.1 in.
    • Turning Radius: 10.5 ft.
    • Curb Weight: 642 lbs.
    • Fuel Capacity: 3.5 gal. (Including Reserve)
    • Available Colors: White, Red, Olive, Natural Gear Camouflage
    FACTORY WARRANTY INFORMATION
    • Warranty: One Year, Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

    Specifications

    Engine
    Engine Type OHV Dry-Sump Longitudinally Mounted Four-Stroke
    Displacement 420 cc
    Bore x Stroke 86.5 x 71.5 mm
    Cylinders Single-Cylinder
    Engine Cooling Liquid-Cooled
    Fuel System Programmed Fuel Injection (PGM-FI), 34 mm Throttle Bodies
    Starting System Electic With Optional Auxiliary Recoil
    Chassis
    Front Suspension Independent Double-Wishbone
    Front Travel 6.3 in.
    Front Brake Type Dual Hydraulic Disc
    Front Tires 24x8-12
    Rear Suspension Independent Double-Wishbone
    Rear Travel 6.3 in.
    Rear Brake Type Rear Brakes: Single Hydraulic Disc; Rear Brake: Sealed Mechanical Drum
    Rear Tires 24x10-11
    Dimensions/Capacities
    Dry Weight 642 lbs.
    Fuel Capacity 3.5 gal. (Including Reserve)
    Ground Clearance 9.1 in.
    Machine Dimensions (LxWxH) 80.9 x 46.1 x 45.1 in.
    Wheelbase 49.4 in.
    Drive Train
    Drive Train Direct Front And Rear Driveshaft
    Final Drive Direct front and rear driveshafts
    Transmission Automatic/ESP Five-Speed With Reverse
    General
    Colors White, Red, Olive, Natural Gear Camouflage
    Warranty One Year, Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

    Compare Models

    		 Print








    Year 2009
    Manufacturer Honda
    Model FourTrax Rancher AT With Power Steering
    Style Utility
    MSRP* $7,099.00
    Chassis
    Front Suspension Independent Double-Wishbone
    Front Travel 6.3 in.
    Front Brake Type Dual Hydraulic Disc
    Front Tires 24x8-12
    Rear Suspension Independent Double-Wishbone
    Rear Travel 6.3 in.
    Rear Brake Type Rear Brakes: Single Hydraulic Disc; Rear Brake: Sealed Mechanical Drum
    Rear Tires 24x10-11
    Frame
    Dimensions/Capacities
    Dry Weight 642 lbs.
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 3.5 gal. (Including Reserve)
    Ground Clearance 9.1 in.
    Machine Dimensions (LxWxH) 80.9 x 46.1 x 45.1 in.
    Wheelbase 49.4 in.
    Drive Train
    Drive Train Direct Front And Rear Driveshaft
    Final Drive Direct front and rear driveshafts
    Transmission Automatic/ESP Five-Speed With Reverse
    Engine
    Engine Type OHV Dry-Sump Longitudinally Mounted Four-Stroke
    Displacement 420 cc
    Bore x Stroke 86.5 x 71.5 mm
    Cylinders Single-Cylinder
    Engine Cooling Liquid-Cooled
    Fuel System Programmed Fuel Injection (PGM-FI), 34 mm Throttle Bodies
    Starting System Electic With Optional Auxiliary Recoil
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors White, Red, Olive, Natural Gear Camouflage
    Warranty One Year, Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan
